Corvette Stingray’s provocative exterior styling is as functional as it is elegant. It makes a bold design statement that embraces the advanced technology of the car, while enhancing its overall performance in everything from the wind tunnel to the track.

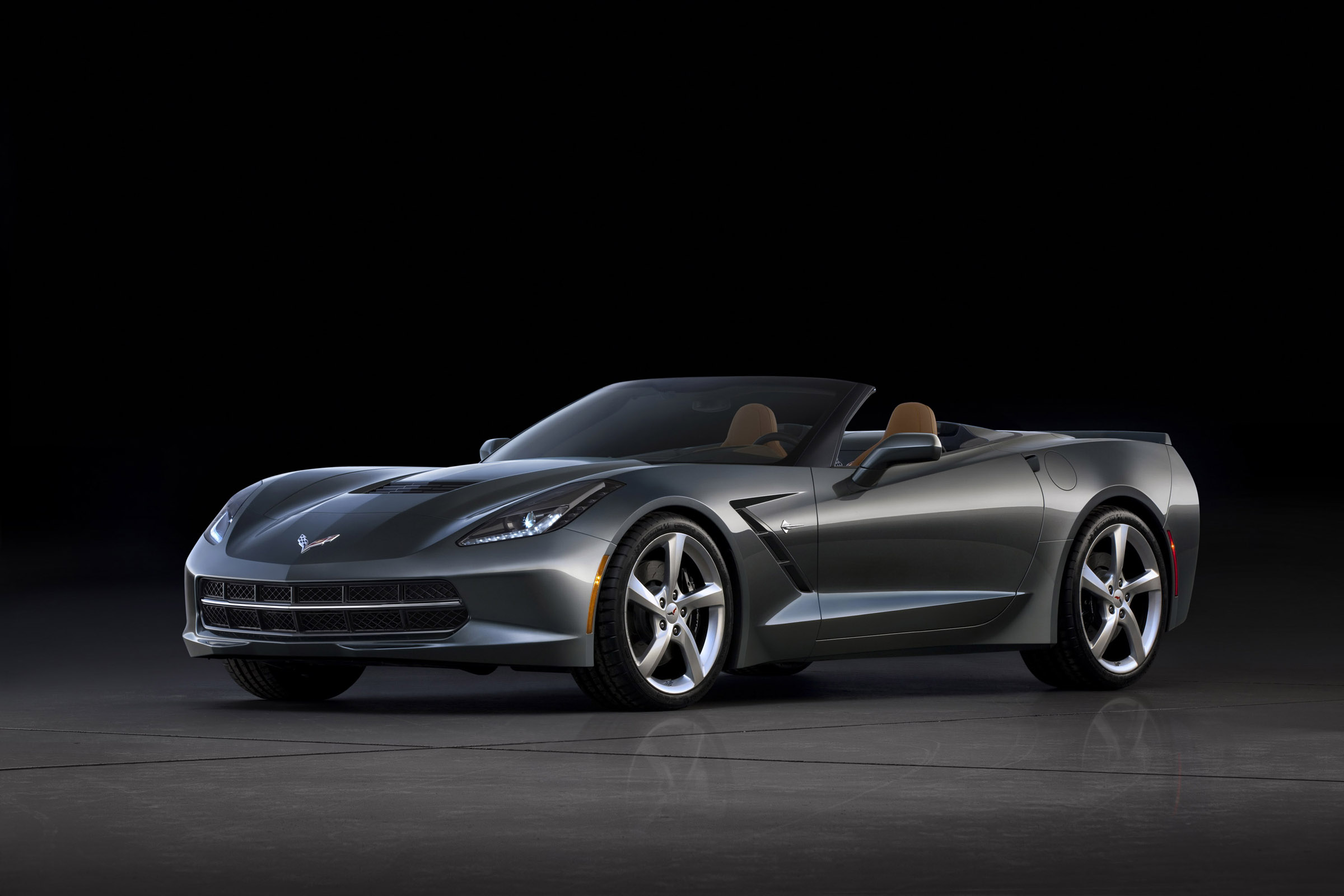

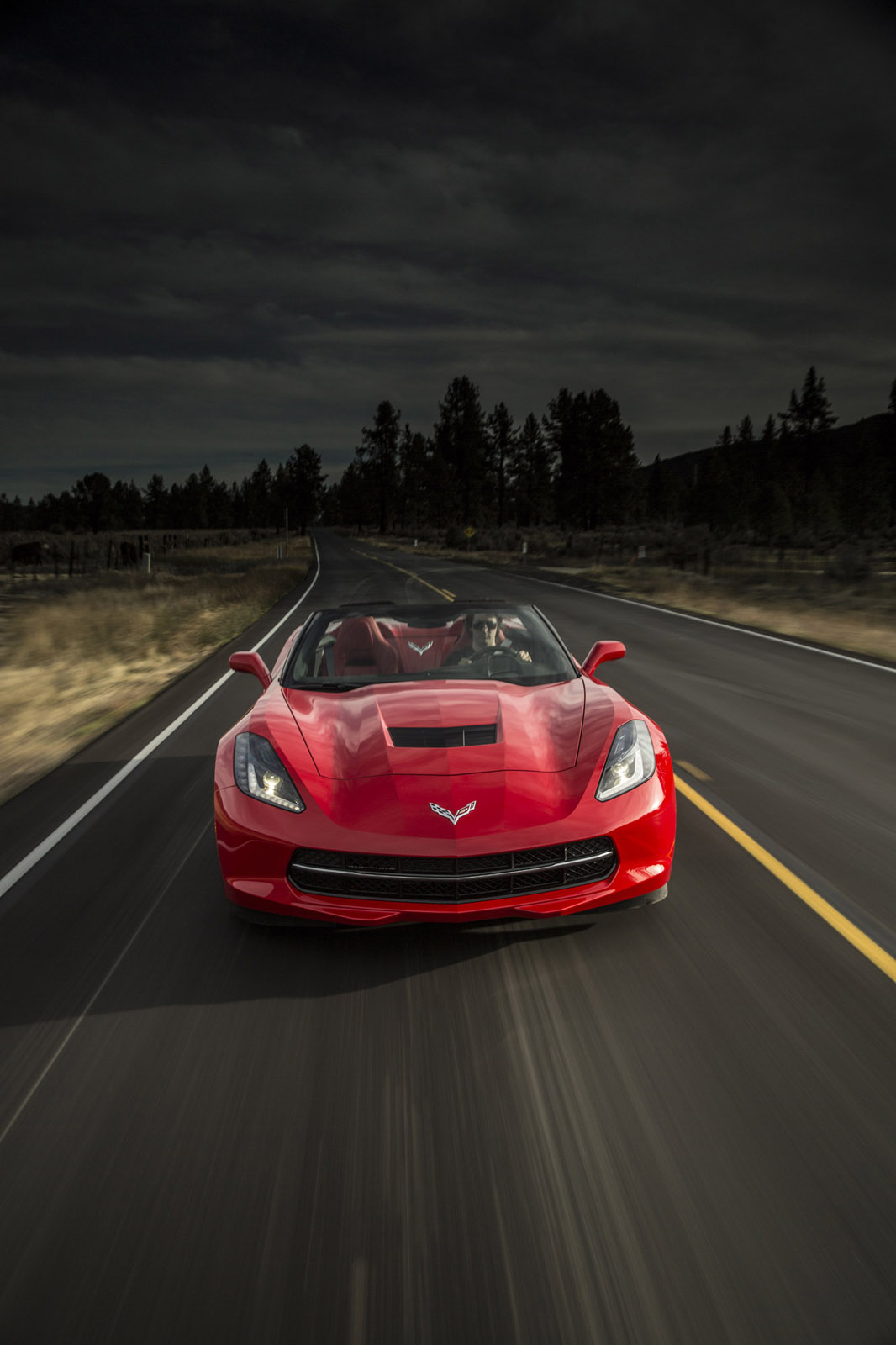

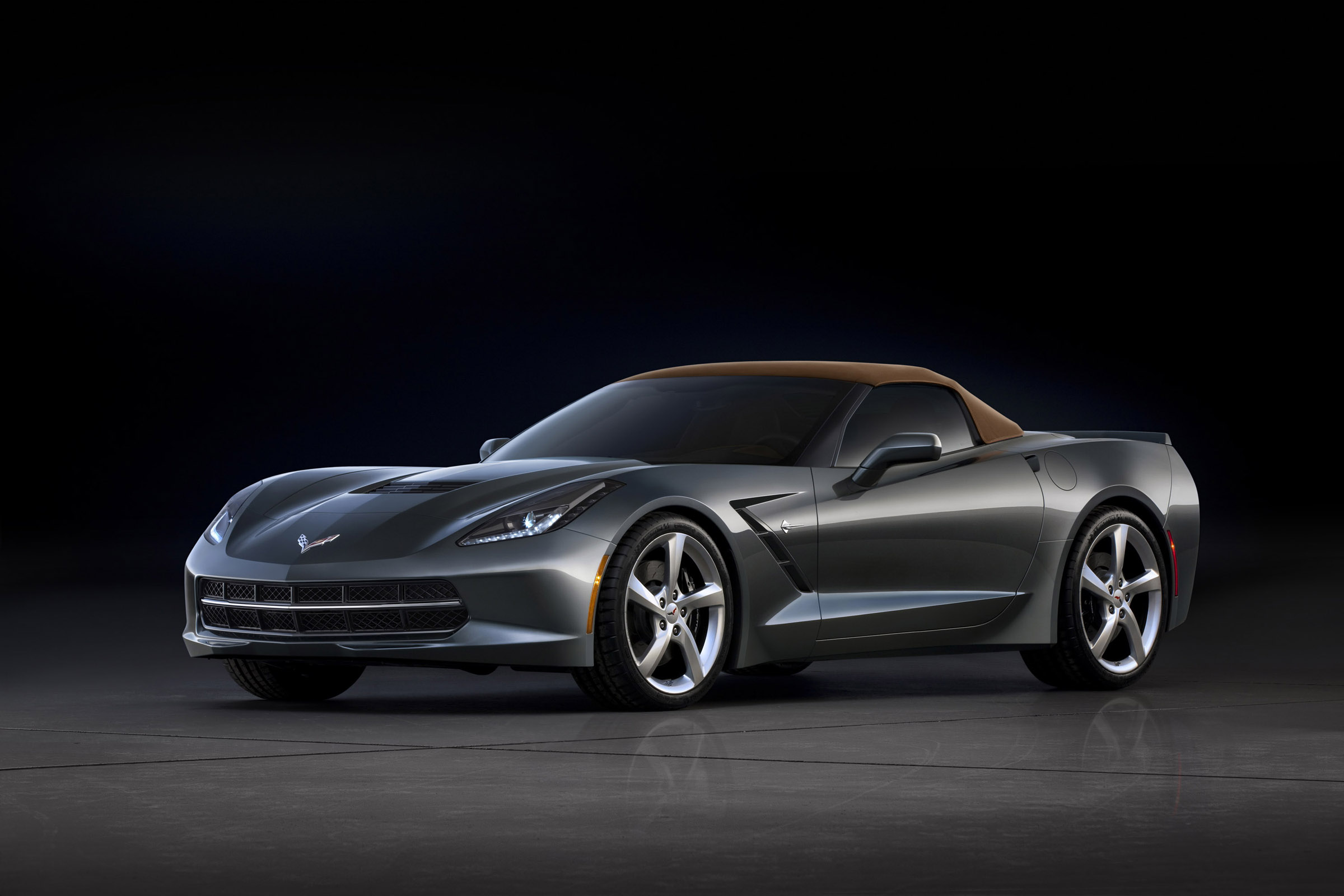

Lighting is a signature element of the Corvette Stingray’s design and reinforces its high-tech aesthetic. At the front, indirect white LED lamps form a distinctive daytime styling cue. They are set in black-chrome lamp housings with standard HID projector headlamps. The turn signals feature edge-lit amber LED lighting.

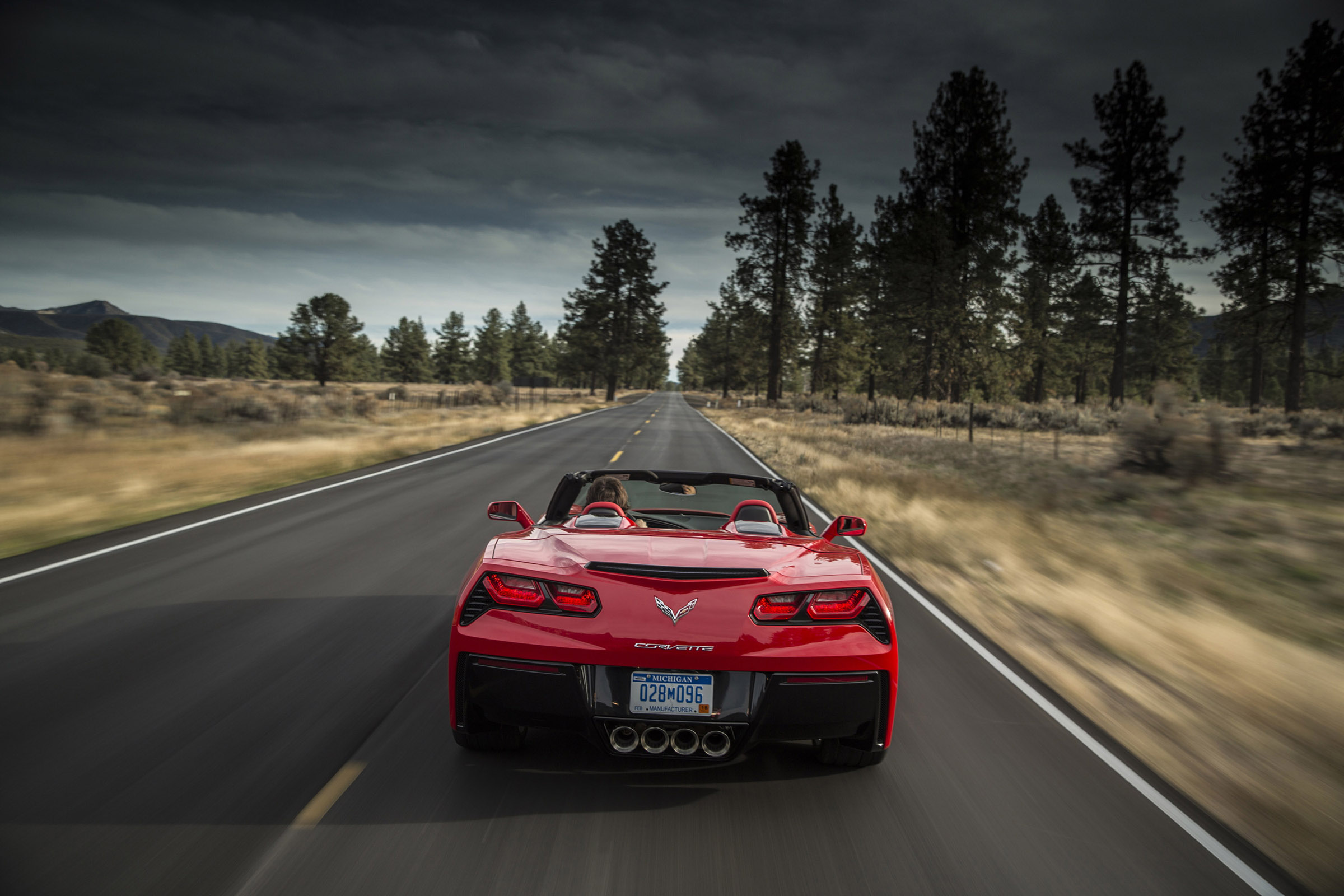

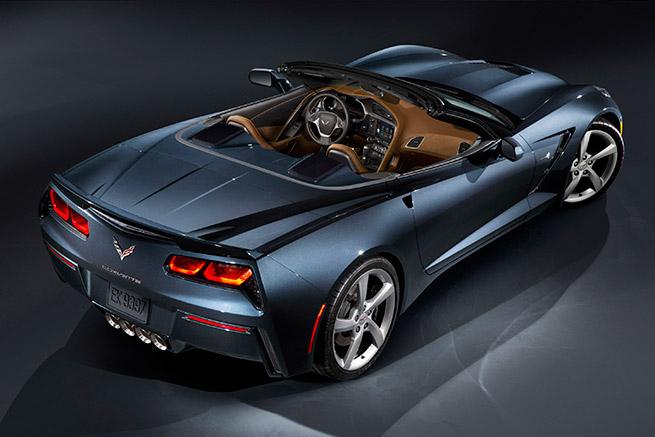

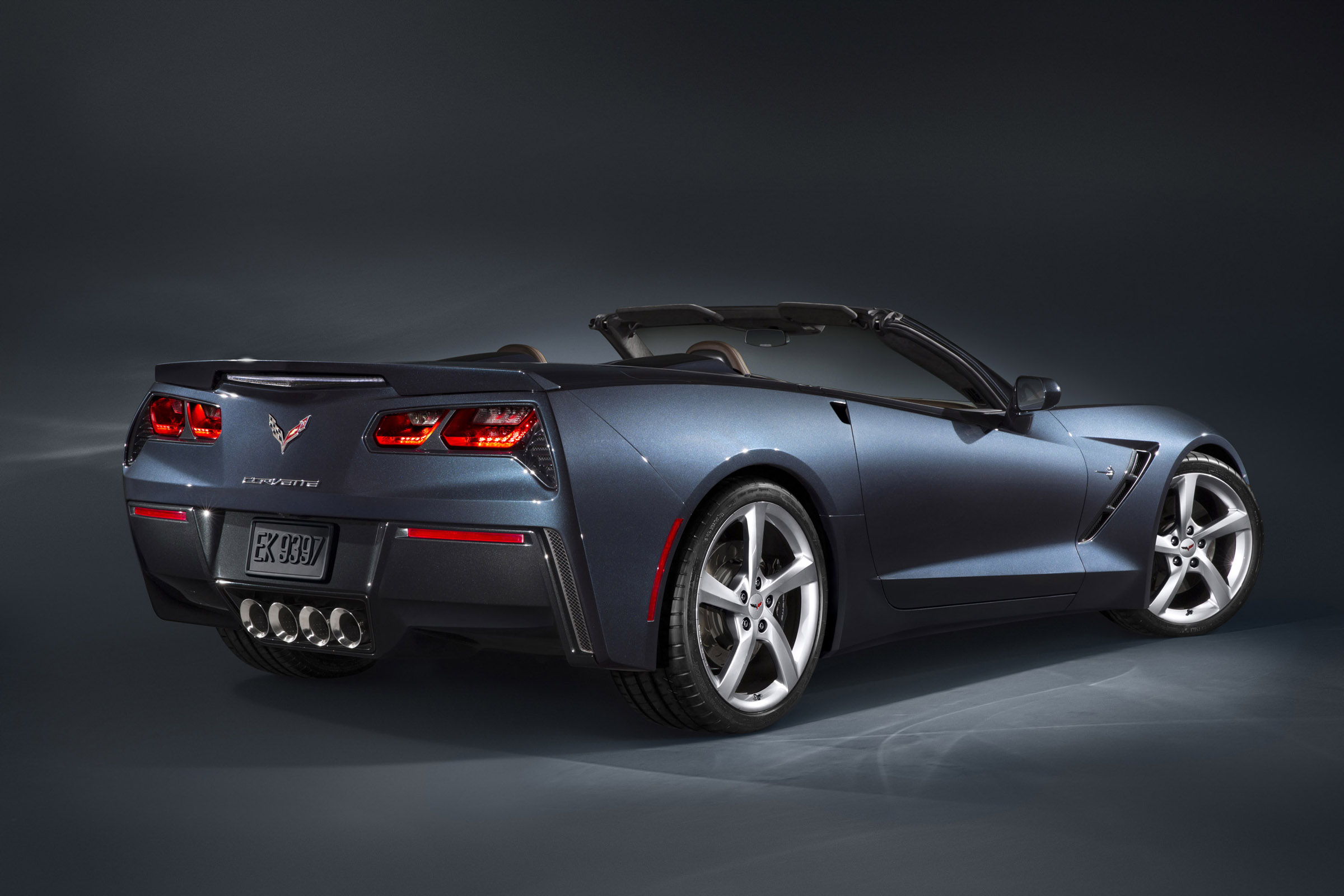

The dual-element taillamps feature three-dimensional, sculpted lenses housing innovative indirect LED lighting. The state-of-the-art lighting uses hidden LED lamps that cast their light up from the bottom of the housing into a reverse reflector, creating an even glow. LED lamps are also used for the white backup lamps. The taillamps integrate functional aircraft-style air outlets for the available differential and transmission coolers.

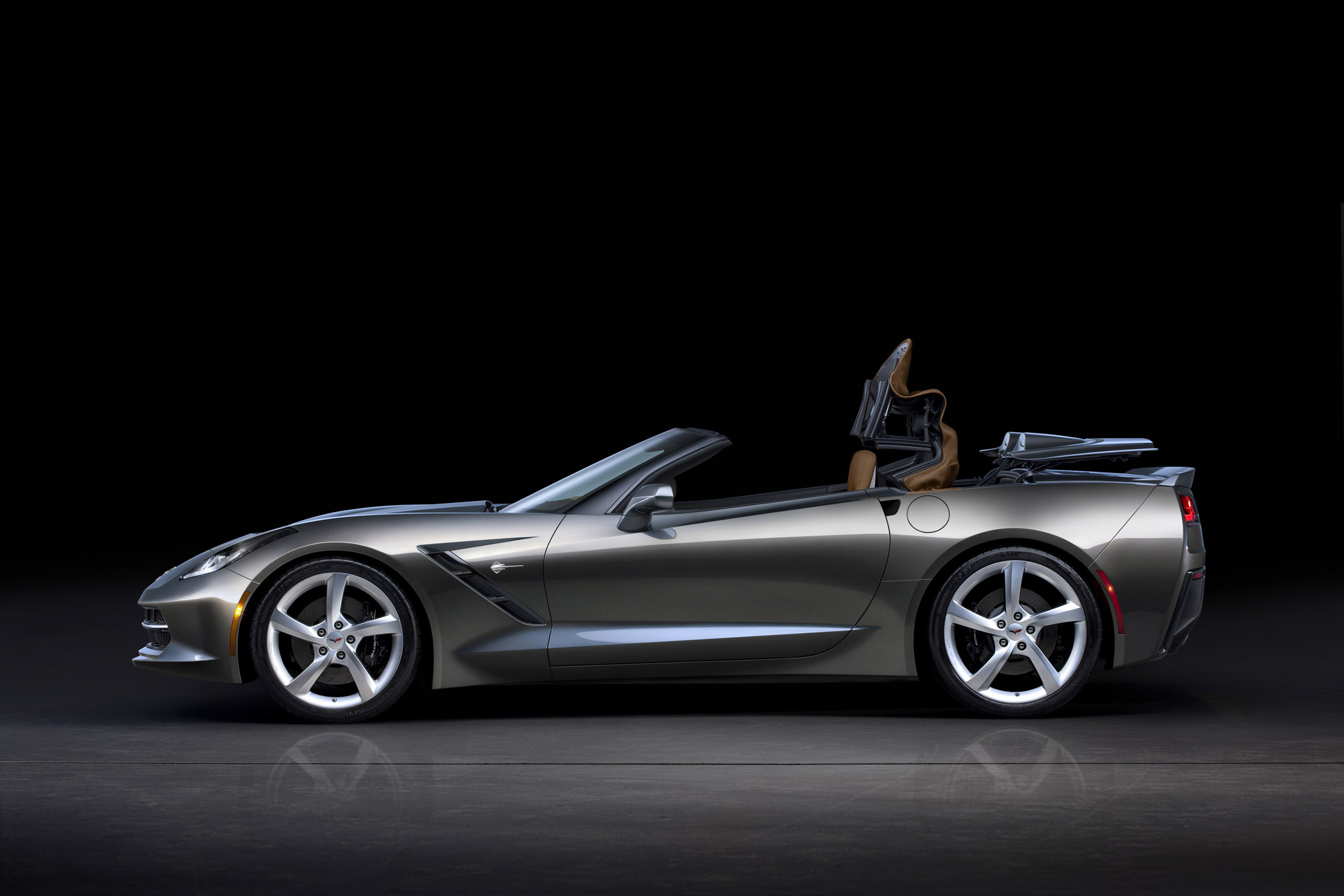

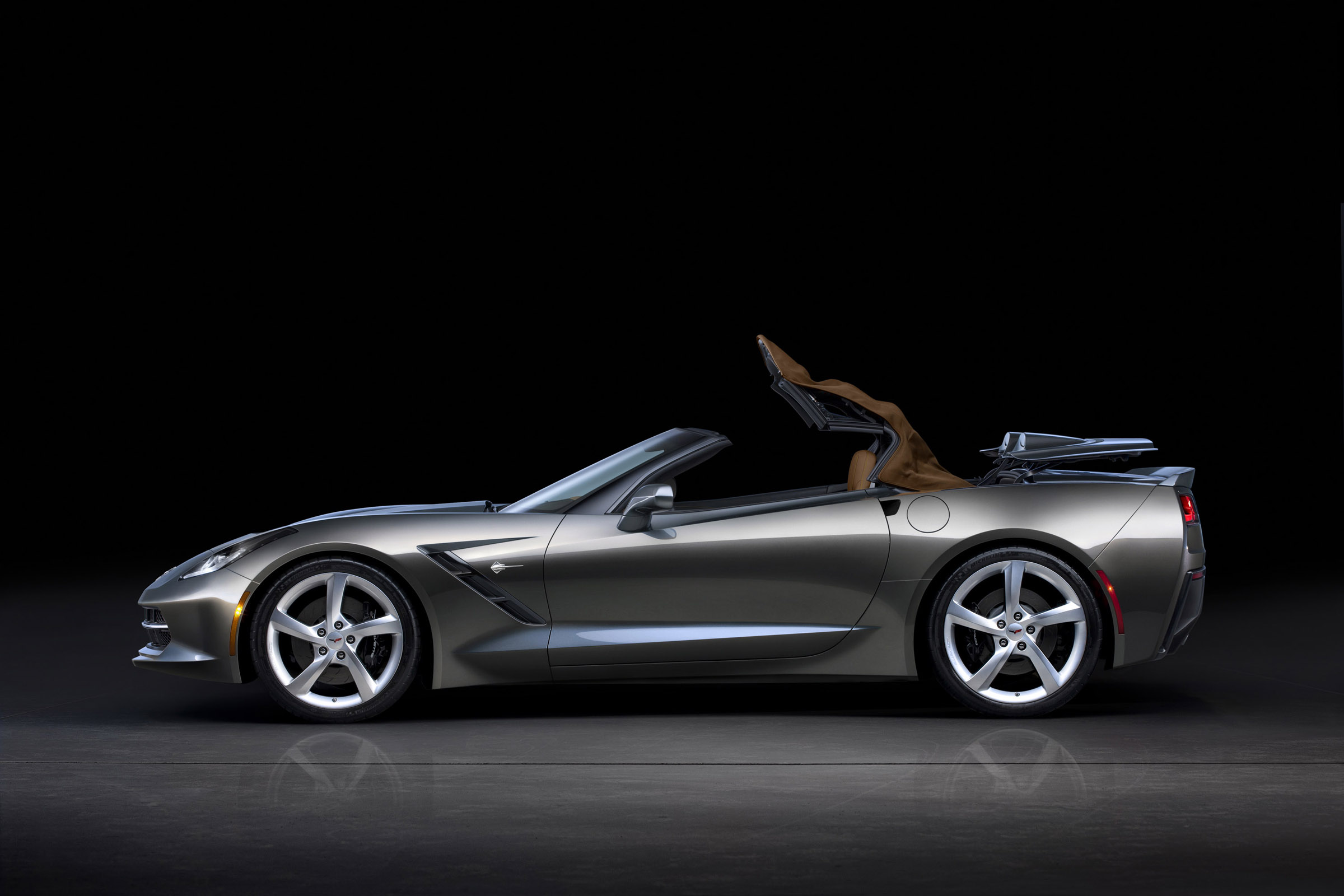

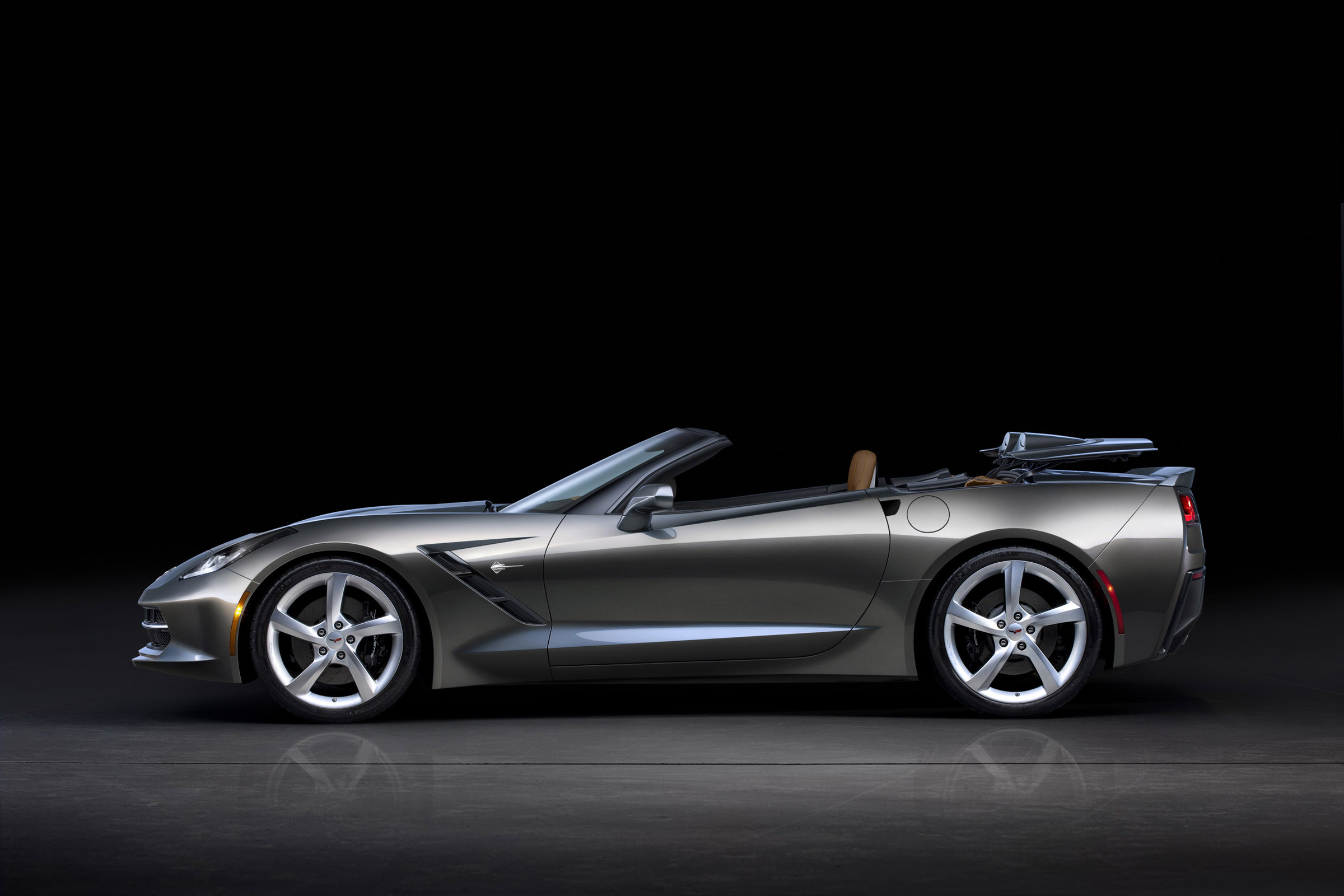

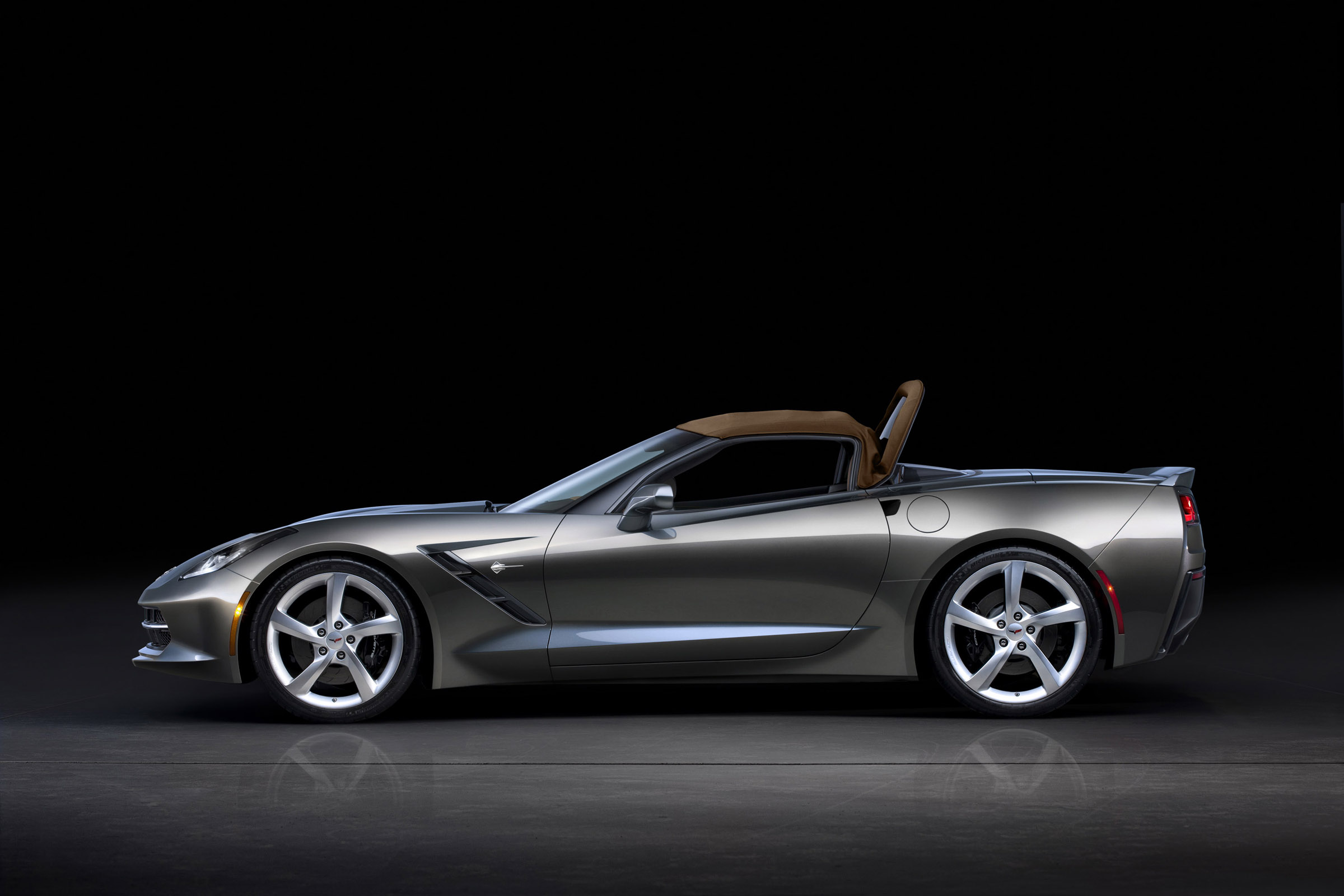

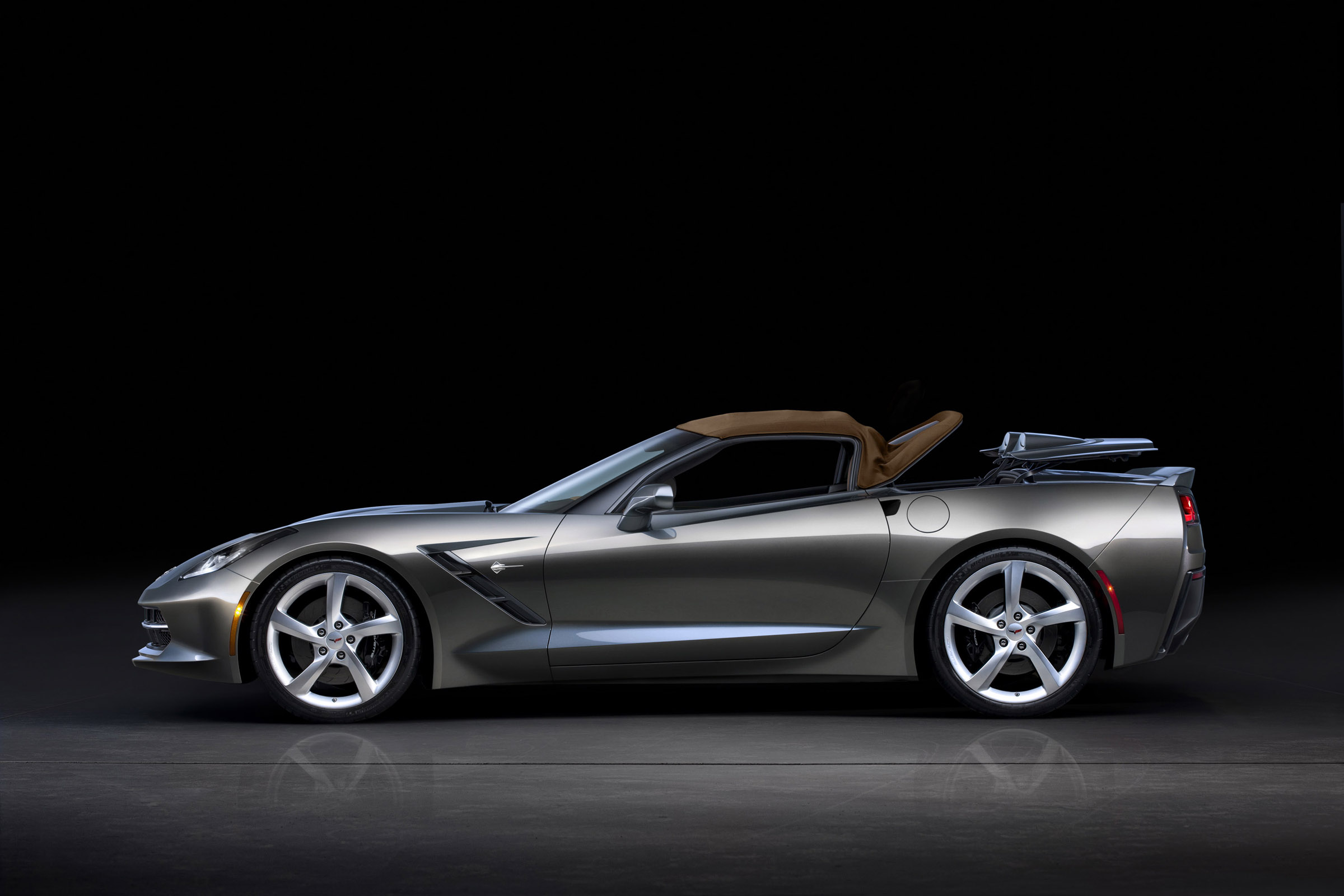

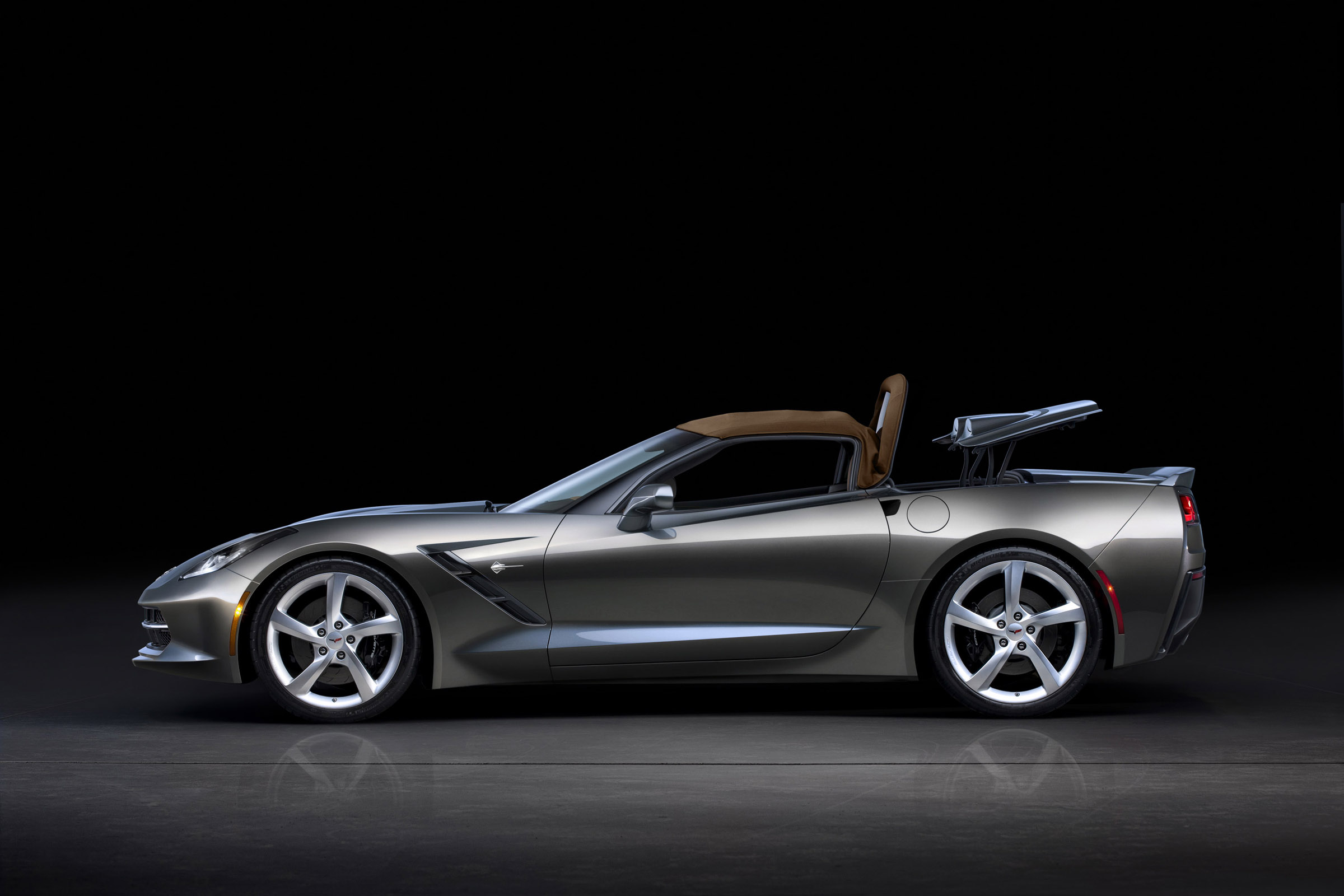

Corvette Stingray convertible features a fully electronic top that can be lowered remotely using the key fob. The top can also be opened or closed on the go, at speeds of up to 30 mph (50 km/h). Its folding mechanism is all-new and enables the top to be lowered in 21 seconds.

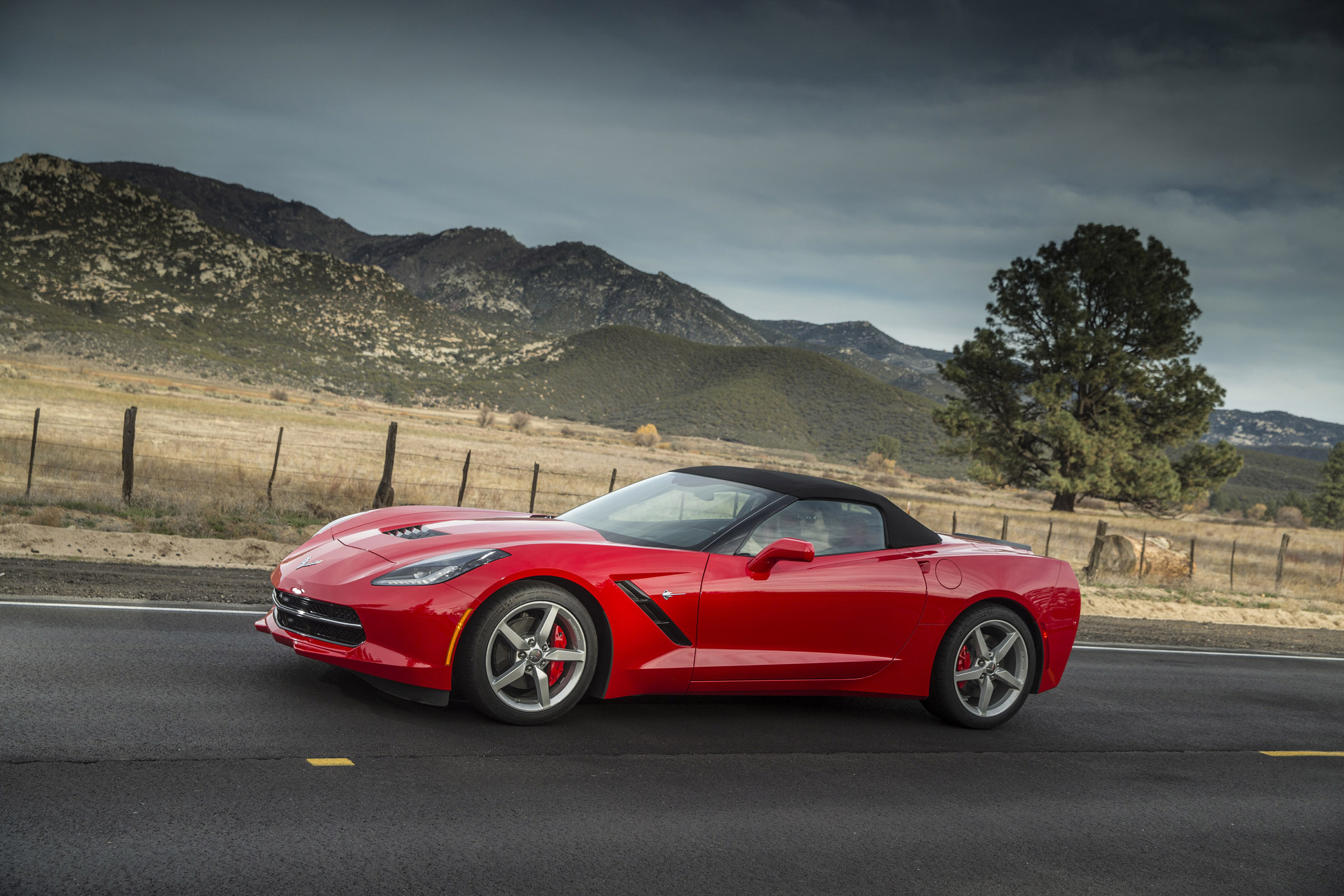

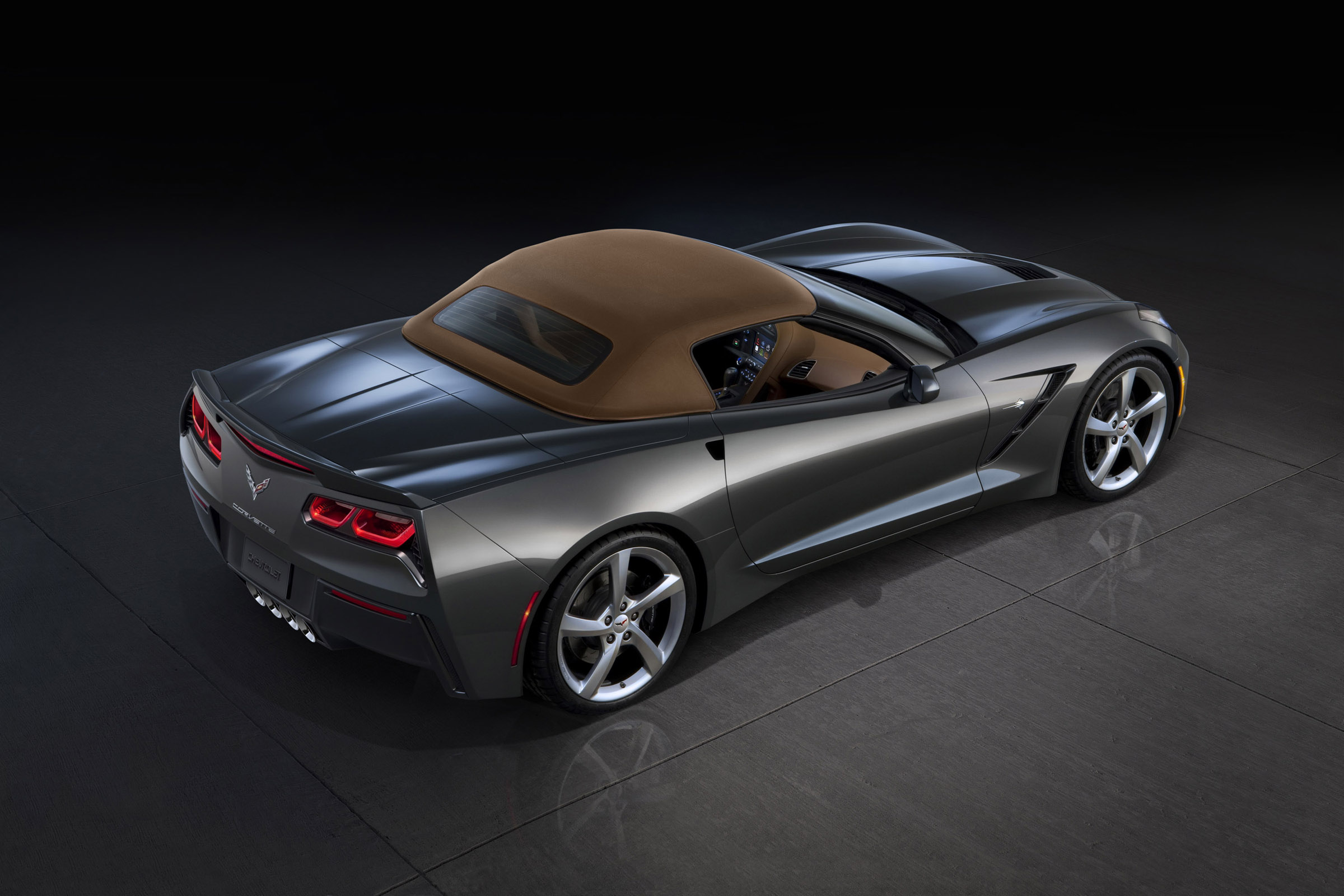

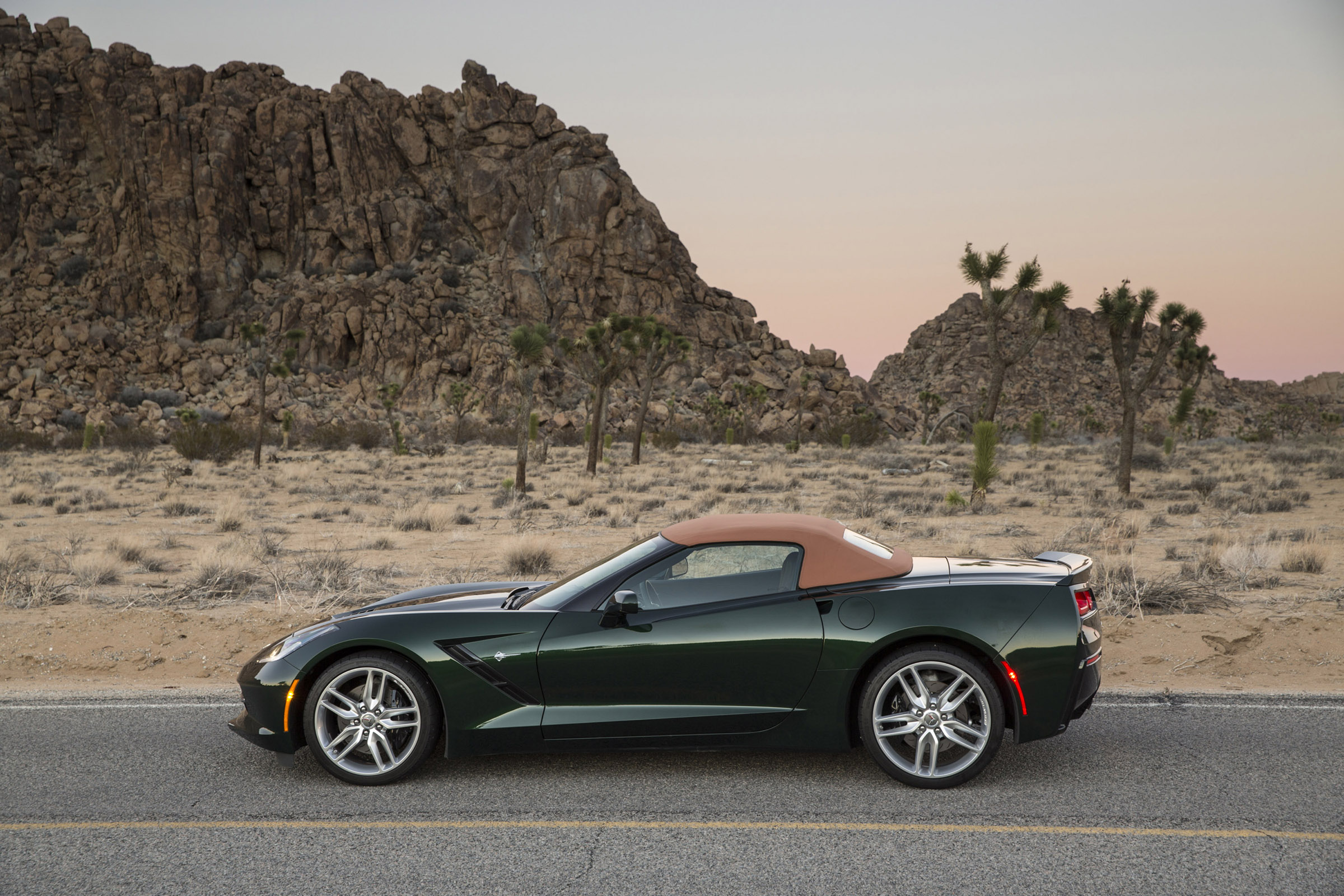

With the top up, convertible is designed for a refined driving experience. A thick fabric top, along with sound-absorbing padding and a glass rear window, contributes to a quiet cabin and premium appearance.

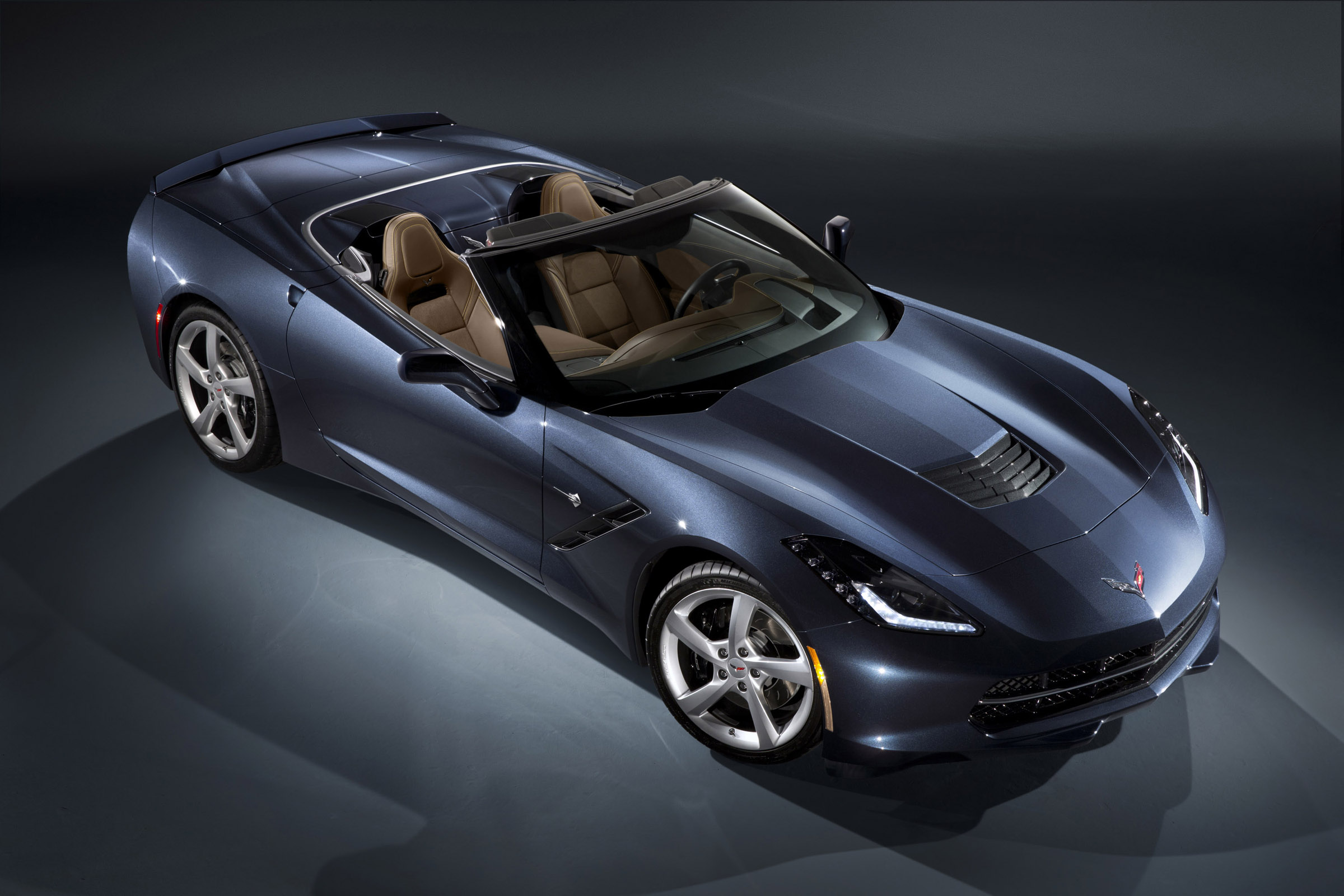

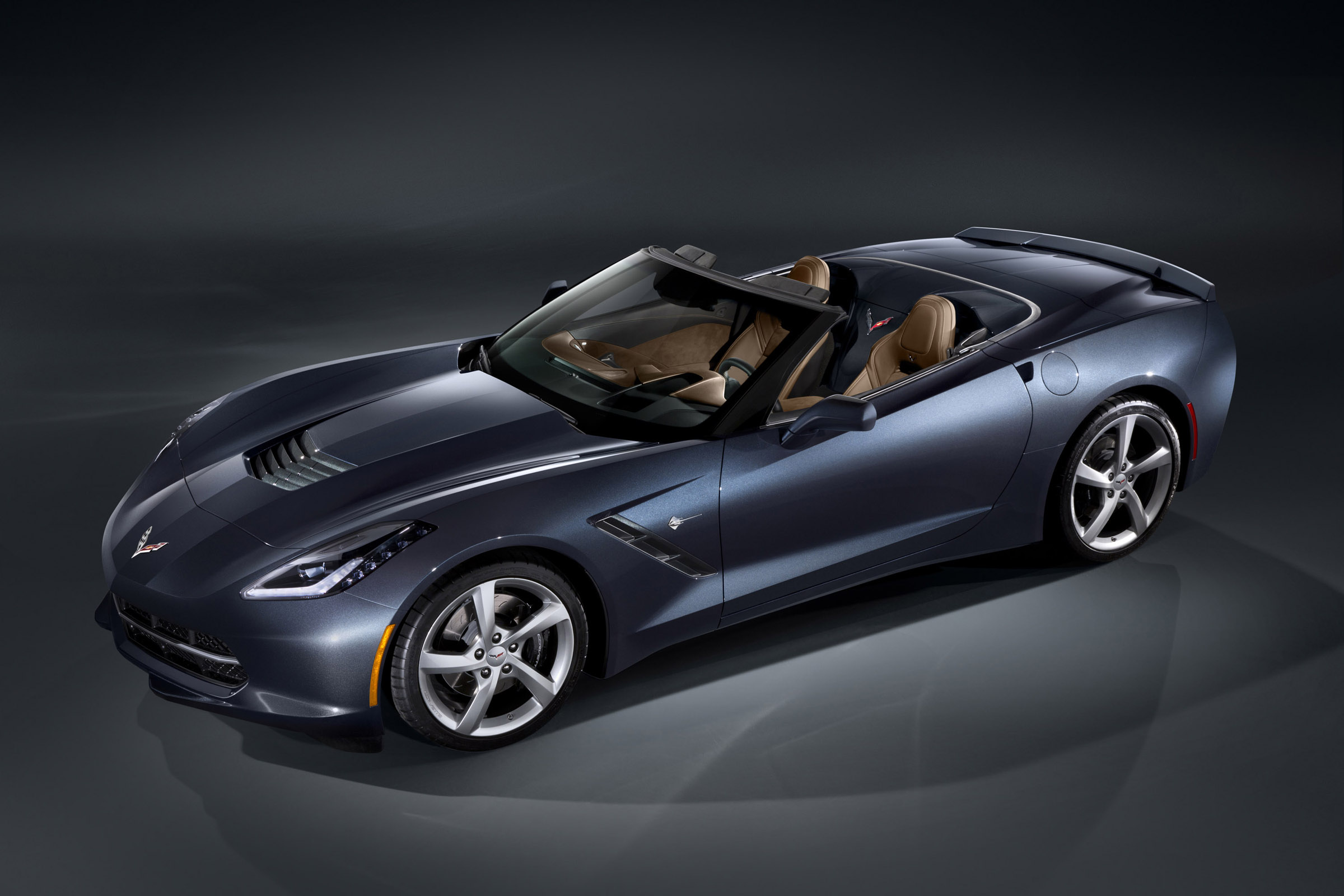

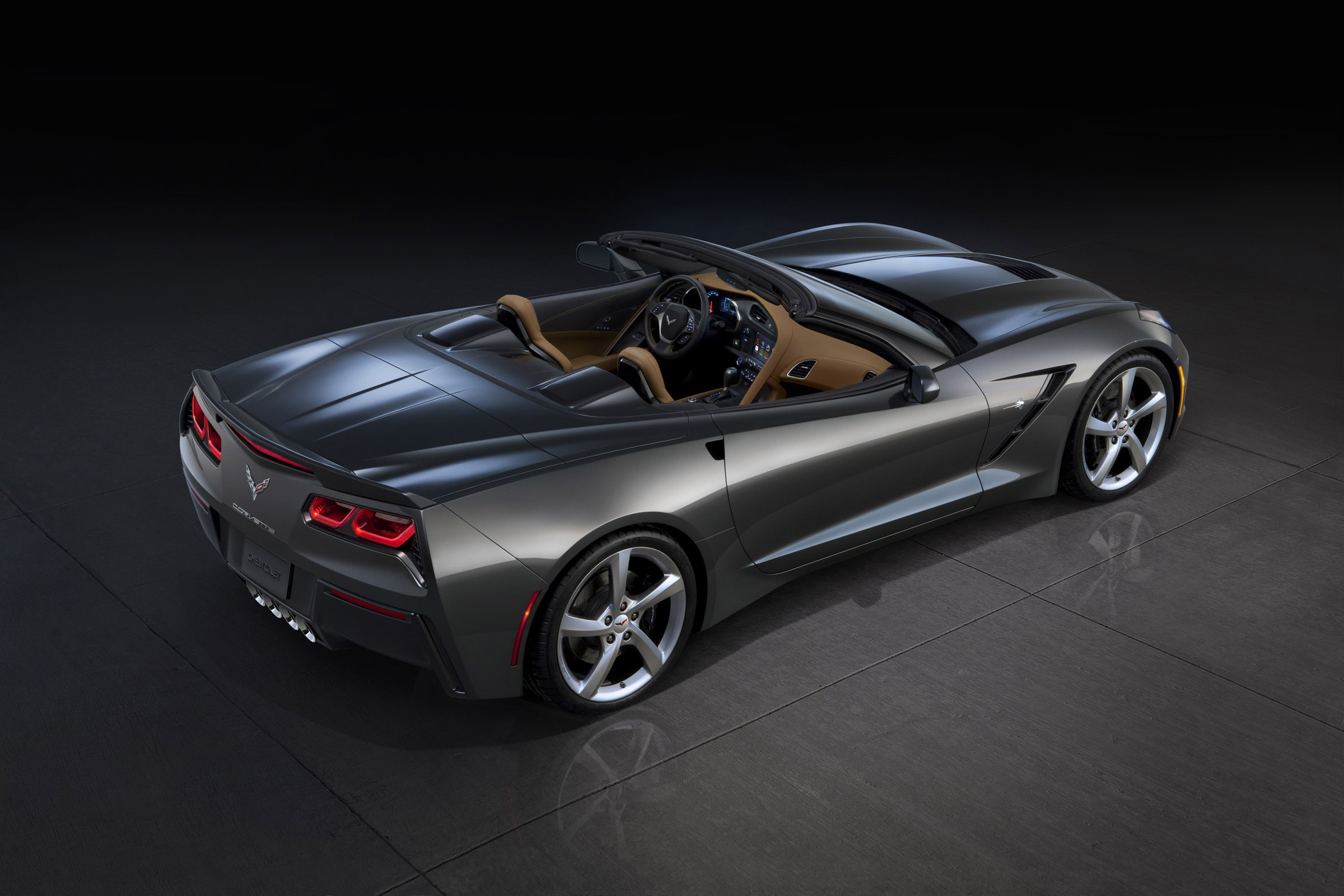

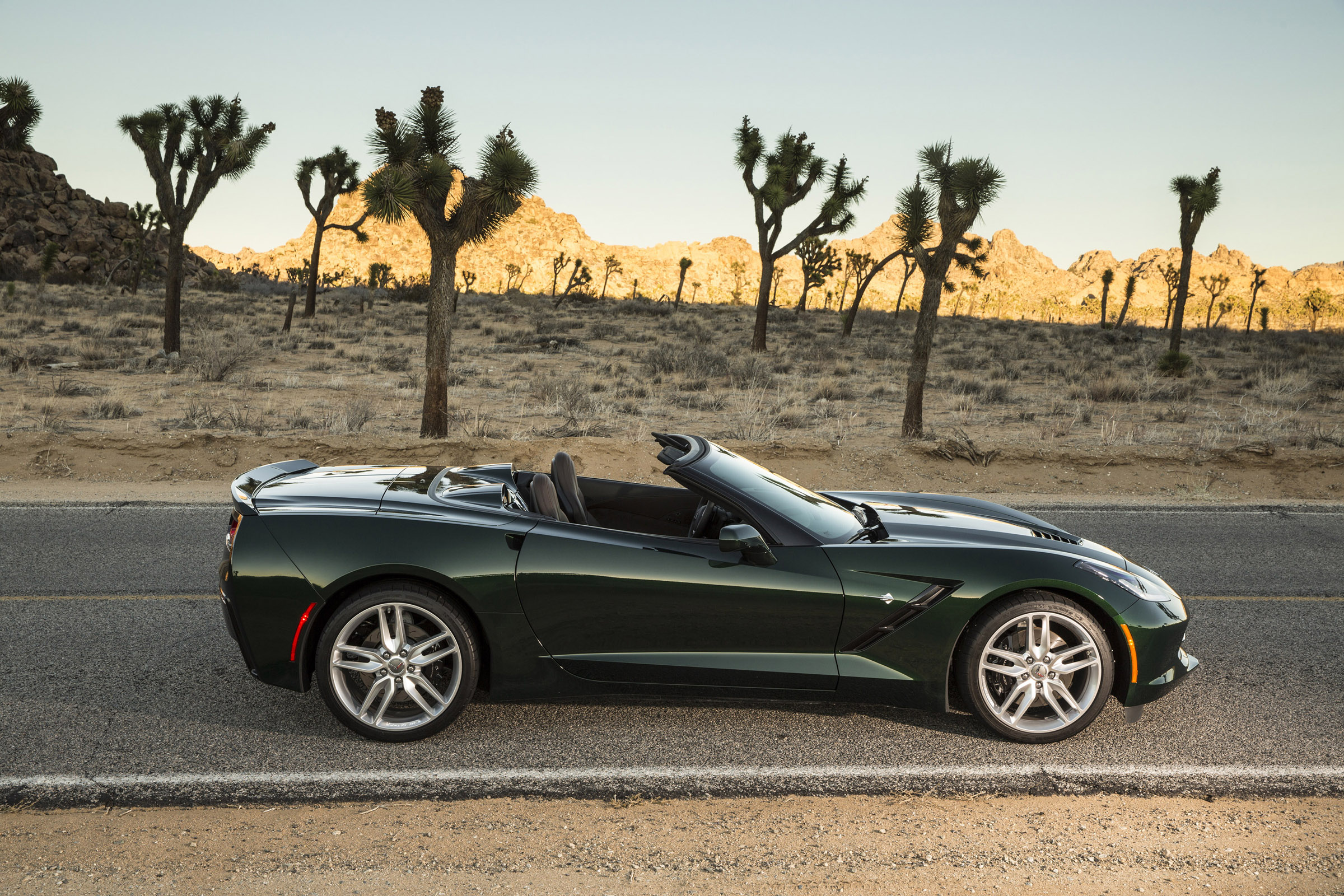

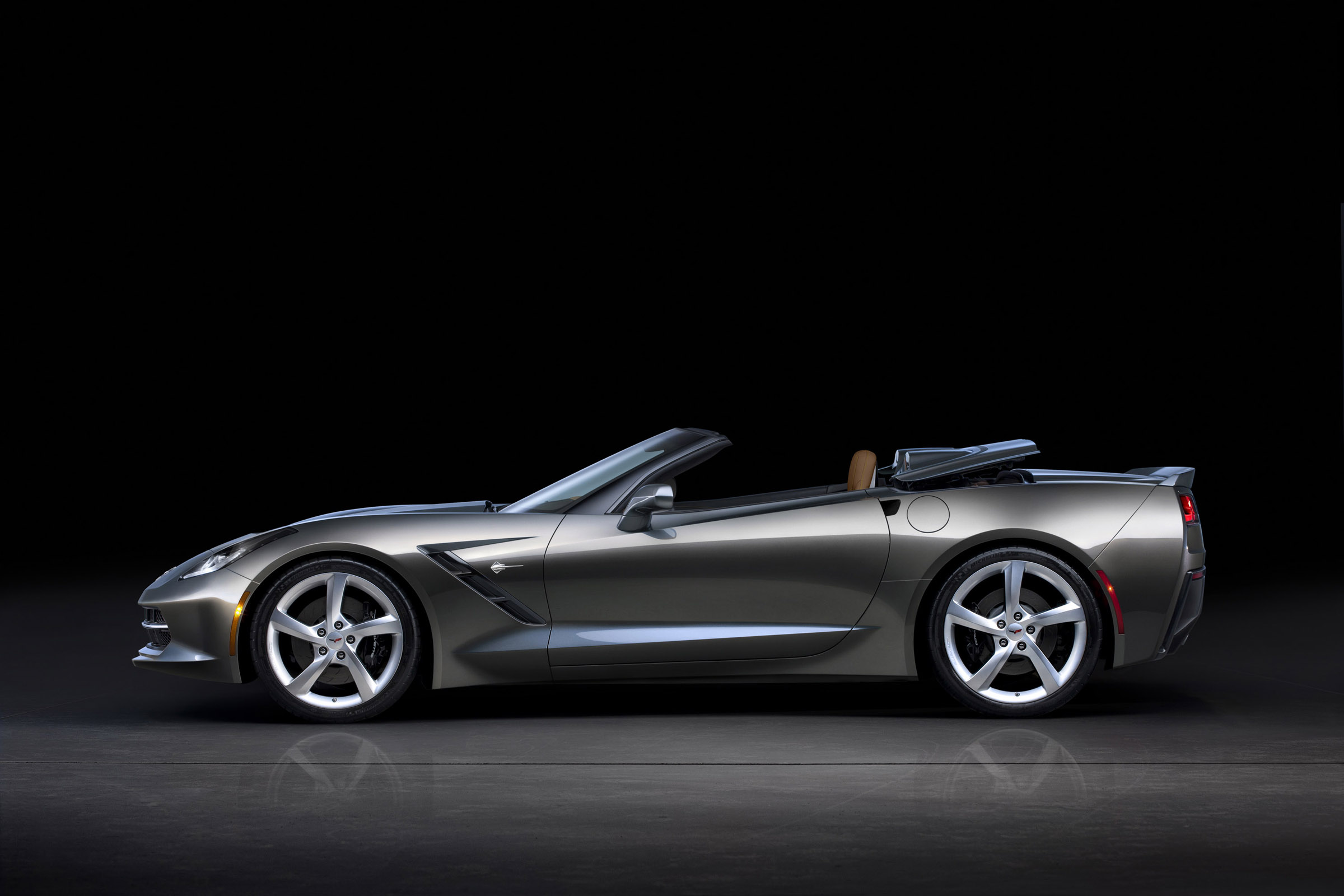

With the top down, the Corvette Stingray’s signature profile is further accentuated. Behind the seat backs, dual black trim panels enhance the character lines of the tonneau cover. Corvette Stingray’s signature “waterfall” design originates in the valley between the seats, bringing the exterior color into the interior.
All Corvette Stingray models with the Z51 Performance Package feature integral coolers for the rear differential and transmission (the transmission cooler is also included with the optional automatic transmission). For coupe models, the air intakes are integrated on the rear quarter panels; and on convertible models, the air intakes are integrated into the underbody.
Airflow through the differential and transmission heat exchangers exits through the aircraft-inspired taillamp vents and lower-rear fascia air outlets. The Z51 Performance Package also includes brake-cooling ducts, a unique rear spoiler and additional air deflectors for enhanced track capability.
Handcrafted, technologically advanced interior

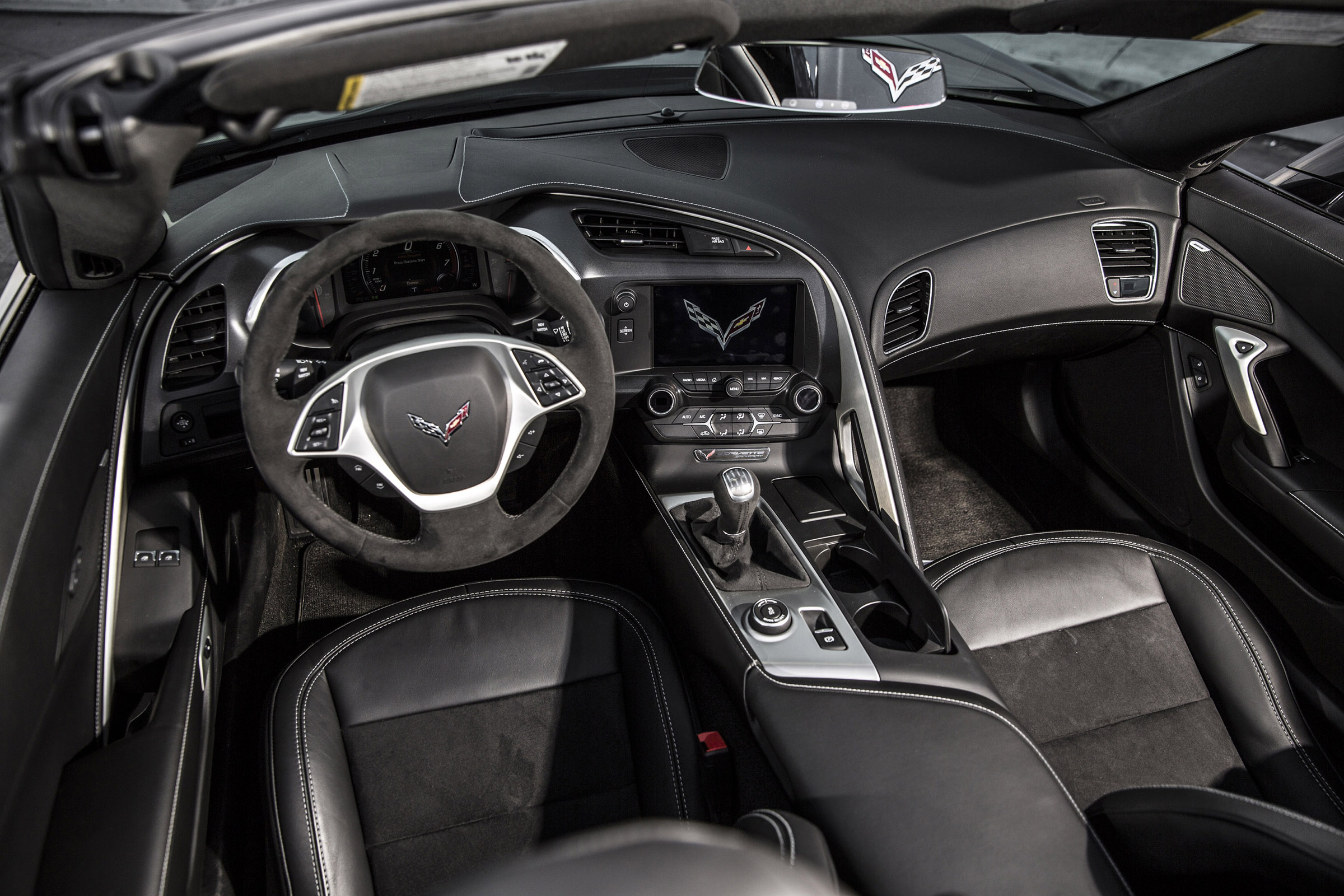

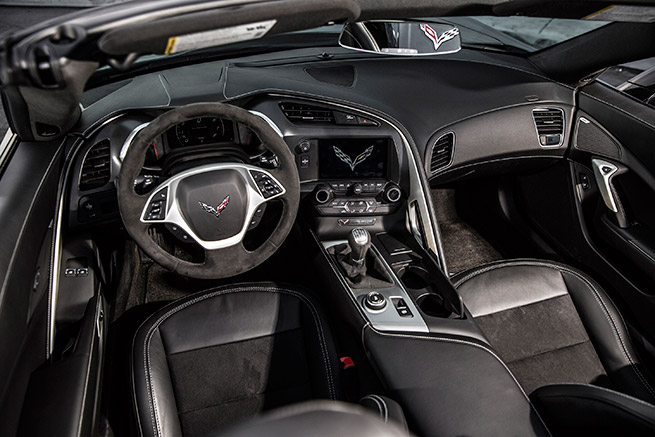

Corvette Stingray interior blends fine materials and craftsmanship with advanced technologies that contribute to a more connected and more engaging driving experience. Every feature and detail is designed to enhance the driver’s connection to the Corvette, starting with the fighter jet-inspired wraparound cockpit and continuing with supportive seats and high-definition, configurable screens.
A comparatively small, 14.1-inch-diameter (360 mm) steering wheel fosters a more direct, immediate feel to directional inputs. The attention to the driver extends to the smallest details, including the flat, precise stitching on the steering wheel designed to provide a smooth, consistent feel.
Precise and elegant stitching also is seen in the available Napa leather trim on the seats. Two seating choices are offered: a GT seat for all-around comfort and a Competition Sport seat with more aggressive side bolstering that provides greater support on the track. The frame structure for both seats is made of magnesium for greater strength.
Engineering details
Corvette Stingray coupe and convertible take advantage of lightweight materials, advanced manufacturing techniques and technology transfer from the Corvette Racing program to produce an ideal 50/50 weight balance and to deliver world-class power-to-weight ratios.
Technologically advanced foundation is an aluminum frame structure so strong, no structural reinforcements are needed for the convertible model. The only changes are limited to accommodations for the folding top and repositioned safety belt mounts.
Frame features main rails composed of five customized aluminum segments, including aluminum extrusions at each end, a center main rail section and hollow-cast nodes at the suspension interface points. Each segment’s gauge varies in thickness from 2mm to 11mm, tailored – along with the shape – to optimize the strength requirements for each frame section with minimal weight.
Performance and efficiency
Corvette Stingray’s 455 horses are generated by LT1 6.2L Small Block V-8 engine, which also produces 460 lb-ft of torque (624 Nm). Its performance comes from combining advanced technologies such as direct injection, Active Fuel Management (cylinder deactivation) and continuously variable valve timing with an advanced combustion system. Z51-equipped models include a dry-sump oiling system.
LT1 is backed by a choice of active, 2.75-inch-diameter exhaust systems. The standard system features a pair of butterfly valves that contribute to greater refinement at cruising speeds when the engine is operating in fuel-saving V-4 mode. The available performance variable-mode active exhaust system has two additional valves that open to a lower-restriction path through the mufflers. When open, these valves increase engine performance and produce a more powerful exhaust note – while also raising the engine’s output to 460 horsepower (343 kW) and 465 lb-ft of torque (630 Nm).
LT1 is offered with an all-new seven-speed manual transmission with Active Rev Matching. It incorporates rev-matching technology for upshifts and downshifts. This driver-selectable feature can be easily engaged or disengaged via paddles on the steering wheel. The seven-speed is used with a new dual-mass flywheel and dual-disc clutch, which deliver greater shift quality and feel through lower inertia. The transmission with the Z51 Performance Package includes specific close-ratio gearing for more aggressive driving.
New for 2015 is an available eight-speed paddle-shift automatic transmission. Designed and built by GM, the new 8L90 transmission delivers world-class shift times that rival the best dual-clutch designs. It is also expected to contribute up to 5-percent greater efficiency, when compared to the previous six-speed automatic. EPA fuel economy test results are pending and will be announced later.
The new eight-speed makes the Corvette Stingray one of the few sports cars to offer a conventional manual transmission and an eight-speed automatic.
2015 Chevrolet Corvette Stingray Convertible
Source: Chevrolet
